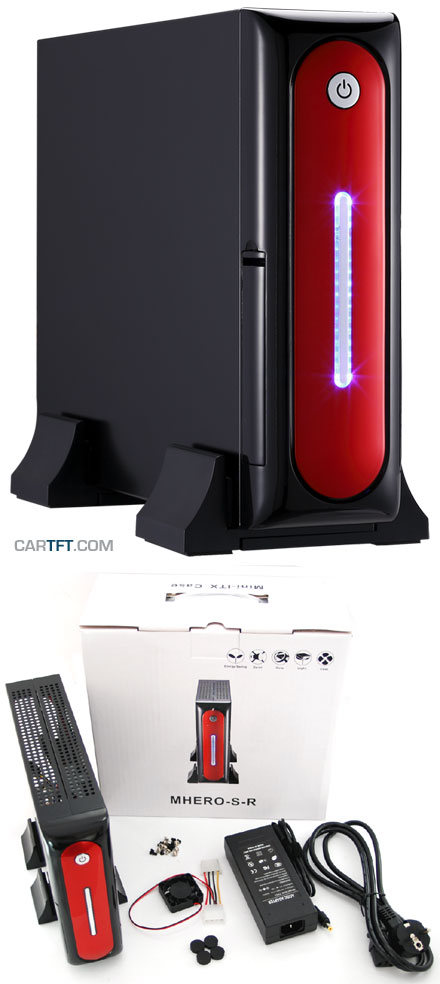

MHero-S-R Mini-ITX enclosure (with 84W PSU)

This beautiful enclosure for Mini-ITX can be equipped with every mainboard where CPU heatsink height does not exceed 5,8cm. At the front side there are 2 removeable bezels which hide connectors for 2x USB, 1x Mic, 1x Line-Out, 1x 4pol power and 1x SATA.

Because of the integrated ATX 120W power supply and the external 84W AC/DC adapter you fanless can power also systems with higher performance. For using the system as a car-pc you can exchange the internal PSU against a M2-ATX(-HV) Automotive power supply.

When system is turned on, the front bezel is enlighted in blue power.



[more]

Share

49.95 EUR
incl. 19% VAT, plus shipping
In Stock (15 pcs)

5 von 5 Sternen
13 ratings
Add to cart

This beautiful enclosure for Mini-ITX can be equipped with every mainboard where CPU heatsink height does not exceed 5,8cm. At the front side there are 2 removeable bezels which hide connectors for 2x USB, 1x Mic, 1x Line-Out, 1x 4pol power and 1x SATA.

Because of the integrated ATX 120W power supply and the external 84W AC/DC adapter you fanless can power also systems with higher performance. For using the system as a car-pc you can exchange the internal PSU against a M2-ATX(-HV) Automotive power supply.

When system is turned on, the front bezel is enlighted in blue power.




Installation notes
Mögliche Konfigurationen
(Mini-ITX)
1x 2.5" HDD/SSD
Max. CPU-heatsink/fan height 48 mm
Specifications
Größe 190 x 250x 60 mm
Gewicht 1,8kg (2,5kg mit Zubehör und Verpackung)
Internal Power Supply Built-in 120W DC power board (size compatible with M2-ATX(-HV))
Power supply connectors 1x P4
1x ATX 20/24 pol
1x 2.5" PATA
2x 3,5" PATA
1x SATA
External AC Adapter -- Input (AC 100~240 V)
-- Output (DC 12V, 7A) 84W
Front Access 2 x USB(2.0), 1x Mic, 1x Line-Out
+
1x 3.5" PATA Stromanschluss, 1x SATA
Scope of supply
- MHero-S-R Mini-ITX/Micro-ATX enclosure
- Fanless external power adapter 84W + EU power cord
- Fanless internal power supply 120W
- Plastic stands
- 40mm enclosure fan
- Screws
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 13 ratings
4 von 5 Sternen from vdelft am 06.01.2014 | | See all my comments

Good product and fit well with D2500CC MB.
I just inform that the PCI of this MB is just on the side of the powersupply connector. This could generate troubles. An optional small fan is delivered with the case, but I do not need it. All cables are provided.
The case offer the possibility to put a 2.5" disk inside and a another one on the ouside (normal connectors foreseen).

4 von 5 Sternen from dbrissenden@pobox.com am 08.08.2012 | | See all my comments

This was a great buy. Compact and stylish and most certainly does the job. All the ports are present and kept neat and tidy by covers down the side; I wasn't expecting an external power socket though it was a great bonus. The only things letting it down was the board was really tight to screw down because of the back plate but this was easily overcome. The other disappointment was the internal PSU did not have the correct connector for my motherboard. Minor points which dont really impact on the use of this.

5 von 5 Sternen from Raininator am 27.02.2012 | | See all my comments

Sehr schmuckes Gehäuse, sehr sauber verarbeitet. Der Einbau von Motherboard und Harddisk verlief ohne Probleme. Ich würde dieses Gehäuse jederzeit wieder kaufen.

4 von 5 Sternen from Kahle am 10.11.2011 | | See all my comments

Sehr professionelles und formschönes Gehäuse.

5 von 5 Sternen from biker_fan am 15.10.2011 | | See all my comments

Super Gehäuse! Passt alles rein, was für einen Mini- / Car-
PC drin sein muss... Schickes Aussehen, welches jedoch für
meine Anwendung fast zu schade ist...
