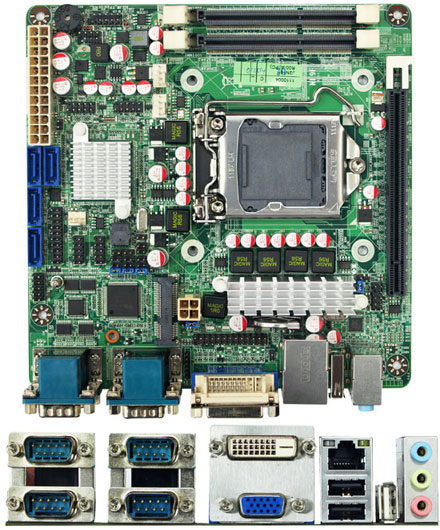

Jetway JNF9F-H61 (Intel H61)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JNF9F-H61 (Intel H61)

  • Intel® H61 Express Chipset
  • Supports Intel LGA 1155 Socket Core™ i3, i5, i7 & Pentium Processors
  • 2 * Dual Channel DDR3-1333/1066 up to 16GB
  • Realtek RT8111EVL Gigabit LAN
  • PCI Express x16 Slot
  • 4-port SATAII 3Gb/s
  • DVI-D, and VGA Video Outputs
  • Built-in Watchdog Timer Technology
  • Mini-ITX Form Factor (170mm x 170mm)

Product Accessories
- 2x COM cable
- Manual
- CD
- 2x SATA cable
- I/O shield


Share

CPU INTEL® LGA 1155 Socket Core i7/i5/i3/Pentium Processor
Chipset INTEL® H61 Chipset
Memory 2 * 240 pin 4GB 1333/1066 Dual CH DDR3 SDRAM DIMM Max. up to 16GB
Expansion Slots 1 *PCIe x 16
Storage 4 * Serial ATA2 3Gb/s connectors
Audio Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN Realtek RT8111EVL Gigabit Ethernet LAN
USB Embedded 7 * USB 2.0/1.1
Special Features Support ACPI S3
Support CPU Smart FAN
Support Watch Dog
Rear Panel I / O 3 * USB 2.0/1.1 ports
1 * RJ-45 port
4 * COM ports
1 * DVI-D port
1 * VGA port
3 * Audio Phone Jack
Internal I / O 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
CPU /NB / Chassis Fan connectors
1 * GPIO header
1 * Parallel header
2 * COM headers (COM6 for RS232/422/485)
1 * CIR header
1 * TPM header
1 * Chassis Intrusion header
1 * FP AUDIO header
1 * 24-pin & 4-pin 12V ATX Power connector
BIOS AMI EFI 64MB SMT Flash ROM
Form Factor Mini-ITX Form Factor (170mm x 170mm)
Functional ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Certificate CE, FCC, RoHS
Temperature Operating within 0~60 centigrade
Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
Specifications [EN] Download (PDF)
