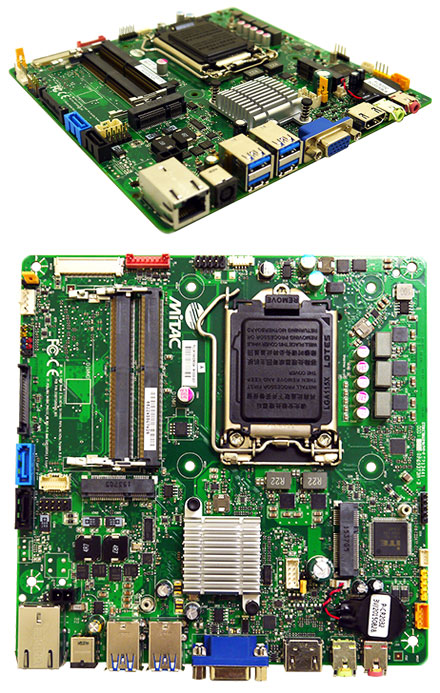

Mitac PH11SI Thin-ITX (Intel H110, LGA1151 Skylake) [Mini-PCIe, 19V]

PRODUCT IS CURRENTLY NOT AVAILABLE !

Support Intel 6^th generation Intel Core Processor
LGA1151 SKL-S CPU compatible (up to 65W)
Dual channel DDR4 with two connectors (up to 16GB)
High speed Gigabit Ethernet connection
Two PCI Express Mini Card connector for expansion
Features 2 SATA3 (6Gbps)
Four Hi-Speed external USB3.0 ports support
HD-out & VGA display connectivity
Embedded LVDS/ connectivity

CPU	LGA1151
Graphics	Intel HD Graphics
Formfactor	ITX (17x17cm)
RAM	2x SO-DDR-IV
Audio	Realtek ALC662
Base	Intel ITX

USB	5x USB2.0, 4x USB3.0
Firewire	--
IDE/SATA	2x SATA
LAN	1x 10/100/1000
Parallel	--
Serial	--

yes	TV-Out
no	PCI
yes	Mini-PCI
no	IDE
no	DVI
yes	800x480 Resolution

no	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
yes	CPU changeable
no	Compact Flash

RAM :

SSD (mSATA):

Build/Install:

Item	Spec
Form Factor	Thin Mini-iTX (170mm x 170mm), 6 layers
Processor	CPU Type : Intel Skylake-S Desktop platform CPU Core : Dual Core / Quad Core Socket : Socket LGA1151 TDP : Support up to 65W CPU types
Chipset	Chipset Series : Intel^® H110 Chipset
Graphics	Integrated GFX by CPU Graphic Core : Gen9 Graphic Memory : Shared Memory 3D : DX12, OpenGL 4.3/4.4 Computing : OpenCL 2.0
Memory	Memory Socket: 260-pin So-DIMM socket	2
	Memory Type: DDR4 @ 1.2V, 2133MHz (Unbuffered Non-ECC) Memory Channel: Dual Channel Memory Capacity : Support total up to 32GB (16GB each by 2 SO-DIMM) ECC Support : No
SIO Controller	IT8519E
LAN Controller	Realtek RTL8111G, 10/100/1000 support
Audio Controller	Codec: HD audio codec, Realtek ALC662
	AMP for internal speaker
Display Controller	Parade DP701
Expansion slot	PCI-E Mini Card (Half) x 1, Signal: PCIe, USB2.0 for WiFi/BT module
	PCI-E Mini Card (Full) x 1, Signal: PCIe, SATA3.0 for mSATA or TV card
External I/O	HD-out	1
	VGA out	1
	USB3.0	4
	RJ-45 (with integrated status LEDs)	1
	Line-out	1
	Mic-in	1
	DC-in Jack (19V DC; 5mm/ ID, 7.5mm/ OD)	1
Internal I/O	LVDS connector	1
	Converter BD header	1
	Light sensor header	1
	USB 2.0 header	5
	SATA Connector	2
	SATA Power	1
	CPU Fan header	1
	Speaker header	1
	Side SW/LED header	1
	DMIC header	1
	19V 2 pin power header (Option#1) 12V 4 pin power header (Option#2)
Power	Option#1: 19V DC-in, 19V 2pin power header Option#2: 12V DC-in, 12V 4pin power header
BIOS	AMI BIOS
Compliance	CE FCC

Data sheet	Download (PDF)
Data sheet	Print view
Mitac Catalogue	Download (PDF)
Mitac Edge AI Guide	Download (PDF)
Specifications	Download (PDF)
BIOS	Download
