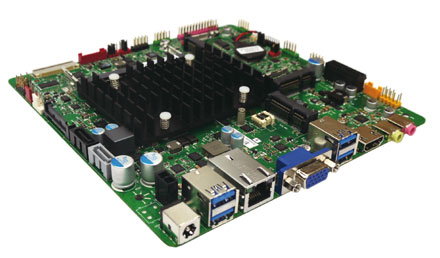

Mitac PD10RI (Intel DN2800MT3) Half-Height (Intel Braswell N3160 4x2.24Ghz CPU, 10-19VDC) [FANLESS]

Mitac PD10RI (Intel DN2800MT3) Half-Height (Intel Braswell N3160 4x2.24Ghz CPU, 10-19VDC) [<b>FANLESS</b>]
  • Intel Braswell !
  • Mini-PCI Express !
  • 2cm height !
  • 10-19VDC Input !

This board is produced by MITAC, the OEM producer of Intel DN2800MT. This board is based on Intel DN2800MT, but is equipped with the moderm Intel Braswell plattform. PD10RI is available until at least 2025.

  • Intel Braswell N3160 quad cores processor
  • Intel HD graphics and DriectX 11 support
  • Dual channel DDR3L with two connectors for MAX. 8GB memory
  • Triple independent display from HD-Out, VGA, and Embedded Display-Port* / LVDS connectivity
  • Features high speed Gigabit Ethernet connection
  • Features 2 SATA 3Gb/s
  • Four Hi-Speed USB3.0 ports support
  • Two Power RS232
  • One PCIe connector for the future Add-in ca [more]

    Share

189.95 EUR
incl. 19% VAT, plus shipping
In Stock (12 pcs)

1 von 5 Sternen
1 ratings
Add to cart

This board is produced by MITAC, the OEM producer of Intel DN2800MT. This board is based on Intel DN2800MT, but is equipped with the moderm Intel Braswell plattform. PD10RI is available until at least 2025.

  • Intel Braswell N3160 quad cores processor
  • Intel HD graphics and DriectX 11 support
  • Dual channel DDR3L with two connectors for MAX. 8GB memory
  • Triple independent display from HD-Out, VGA, and Embedded Display-Port* / LVDS connectivity
  • Features high speed Gigabit Ethernet connection
  • Features 2 SATA 3Gb/s
  • Four Hi-Speed USB3.0 ports support
  • Two Power RS232
  • One PCIe connector for the future Add-in card
  • Two PCI Express Mini Card connector for expansion card
  • 8 V to 24 V wide-range voltage input via back-panel DC jack or internal power connector

Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters [6.7 inches] x 170.18 millimeters [6.7 inches])
Processor Chipset Intel Braswell N3160 Processor with integrated graphics
Memory Support for dual channel DDR3L 1066/1333 SO-DIMMs
Support for up to 8 GB of system memory on a single SO-DIMM (or 4 GB each by 2 SO-DIMM)
204-pin DDR3L SO-DIMM 2
Graphics Integrated graphics:
Digital displays (HD-Out)
Analog displays (VGA)
Internal flat panel displays:
LVDS
Embedded DisplayPort* eDP*
External graphics support via a PCI Express 1.0a x1 graphics add-in card connector
Audio 2 + 2 Channel High Definition Audio ( HD Audio) using a Realtek* ALC888S audio codec supporting:
Analog stereo line-out (back panel jack)
In-chassis stereo speakers support (3 W/3 Ω via an internal header)
Expansion Capability PCI Express x1 add-in card connector 1
PCI Express Full-/Half-Mini Card slot 1
PCI Express Half-Mini Card slot 1
Peripheral Interfaces USB 2.0 front panel ports 5 (Headers)
USB 3.0 back panel connectors (blue) 4
SATA 3.0 Gb/s 2
SATA 3.0 Gb/s port (multiplexed with an mSATA port, routed to the PCI Express Full-/Half-Mini Card slot) 1
Legacy I/O Legacy I/O Controller (NCT6683D) that provides:
Powered RS232 2
Parallel port via an onboard header 1
LAN Support Realtek RTL8111G-CG Gigabit (10/100/1000 Mb/s) Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs
BIOS BIOS resident in a Serial Peripheral Interface (SPI) Flash device
Support for Advanced Configuration and Power Interface (ACPI), and System Management BIOS (SMBIOS)
Hardware Management Nuvoton NCT6104D based subsystem, including:
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
3-pin system fan header
Power Requirement DC connectivity via back-panel DC jack(2.5mm/ ID, 5.5mm/ OD)
Internal 2 pin power connector
Environment Operating Temperature: 0°C to +60°C
Storage Temperature: -20°C to +70°C
Safety CE
FCC
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Specifications Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 1 von 5 Sternen
Average rating, based on 1 ratings
1 von 5 Sternen from heidenreich am 07.03.2018

Ersetzen sollte dieses Board ein original Intel DN2800MT mit nur 1.86 GHz. CarTFT bietet hier dieses Mitac als 4x2,4GHz an. Diese Angabe ist schlichtweg falsch! Der verbaute J3160 läuft mit nur 1.6 und nicht 2.4 GHz. Leider habe ich nicht erst bei Intel recherchiert, sondern der Angabe "4x2.24Ghz CPU" von CarTFT getraut.
