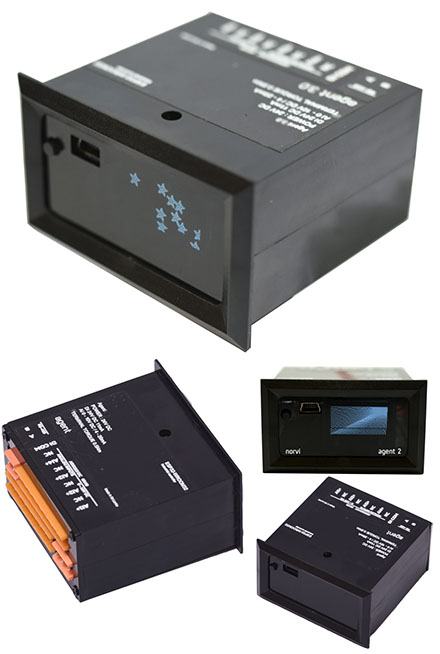

NORVI-AP01-BA2 (4x Digital inputs, 1x RS-485)

NORVI-AP01-<b>BA2</b> (4x Digital inputs, 1x <b>RS-485</b>)
  • WIFI
  • Dual Core 32bit 160-Mhz
  • 4 Mb Flash
  • 520 Kbytes SRAM

Agent Two Panel mount IoT Node Industrial IoT Node featured with ESP32-WROOM SoC, built into a panel mount device, for applications which requires tiny display. Front mount USB port provides easy access to programming and a button connected to GPIO provides facility for user inputs.

Can be ordered with 0.96 OLED display or RGB pixel LED

  • Dual Core 32bit 160-Mhz CPU
  • 520 Kbytes SRAM / 4 Mb Flash
  • Machine Monitoring
  • Low power sensor node
  • Simple process controller
  • Datalogger
  • WiFi – NB-IoT Bridge
  • Modbus Gateway
  • MQTT Gateway




    • Share

    69.95 EUR
    incl. 19% VAT, plus shipping
    In Stock (3 pcs)
    Add to cart
    Main
    Range of product NORVI Agent 2
    Product type Programmable node
    Rated supply voltage Standard 6 - 36V DC / Low Power : 3.3 - 6V DC
    Field of Application Monitoring and controlling
    Discrete Input number 3
    Discrete Input Voltage 18 - 24 V DC
    Analog input number 3
    Analog input range 0 - 10V DC / 0 - 20 mA (depending on model)
    Communication RS-485 (applicable or BE-Series only)
    Analog input range 0 - 10V DC / 0 - 20 mA (depending on model)
    Analog input controller 16 bit with PGA ADS-1115
    Discrete output type Transistor (applicable or BE-Series only)
    Discrete output number 2 Transistor outputs
    Discrete output voltage 24V DC for transistor output
    Complementary
    Local signalling 1 LED green for PWR
    4 LED red for Digital Inputs
    1 WS2812 pixel RGB Led
    Electrical connection Removable screw terminal block for inputs and outputs (pitch 5.08 mm)
    Mounting support Top hat type TH35-15 rail conforming to IEC 60715
    Top hat type TH35-7.5 rail conforming to IEC 60715
    Height 86.00 mm
    Depth 59.00 mm
    Width 35.00 mm
    Product weight 0.91 Kg
    Environment
    Relave humidity 10....95% without condensation in operation
    IP degree of protection IP20
    Operating altitude 0...2000m
    Storage altitude 0...3000m
    Shock resistance 15 gn for 11 ms
    Operating temperature -40 to +85 'C
    Data sheet Download (PDF)
    Data sheet Print view
    Datasheet Download (PDF)
    Brochure Download
    Example Libaries Download
