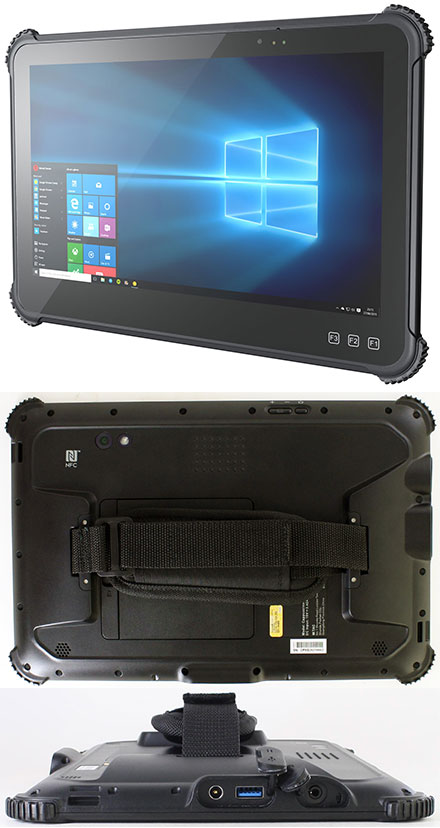

Mitac Cappuccino Rugged IP65 Tablet-PC (11.6" 500nits, Intel N4200, 64GB SSD, 8GB RAM, WLAN/BT, NFC, GPS, LTE 4G, Win10)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Mitac Cappuccino Rugged IP65 Tablet-PC (11.6" 500nits, Intel N4200, 64GB SSD, 8GB RAM, WLAN/BT, NFC, GPS, LTE 4G, Win10)
  • Ruggedized ! IP65 !
  • Intel Pentium Quad Core !
  • GPS, LTE, NFC, Barcode !
  • Vehicle docking optional !

  • 11.6" Windows Tablet with 2K Resolution
  • Extra Light (<900g)
  • IP65
  • MIL-STD-810G on 1.2M Drop Proof, S&V;, High/Low Temperature
  • Hot-Swappable Battery
  • 4.2 hrs Battery Life with 19.53Whr Battery
  • Honeywell Software Decode Scanner 1D/2D
  • WiFi ac/a/b/g/n, GPS & LTE
  • NFC Module
  • HW TPM 2.0 FIPS 140-2 Level 2 Compliance
  • Optional docking stations (stationary or vehicle mount)


Share

DISPLAYSize11.6" TFT-LCD
Max. Resolution1920 x 1080
Luminance (cd/m2) 500nits (Option: 300 nits)
Glass TypeGorilla Glass 3 and Direct Bonding
TOUCH SCREENTYPEP-CAP
Touch10 finger capacitive multi-touchscreen supporting glove mode and rain mode
TABLETOperating System Windows® 10 IoT Enterprise 2016 LTSB Multi-Language (Option: Linux CentOS7)
ProcessorIntel Apollo Lake Pentium N4200 (Quad-Cores) 1.1GHz with turbo frequency to 2.5GHz, 2MB L2 Cache (4 Threads)
ChipsetIntel SoC Integrated
System RAM LPDDR4 3733MHz 8GB (Option: 4GB)
System ROM M.2 SSD 64GB / (Option: 256GB++)
WirelessIEEE 802.11 ac/a/b/g/n (2.4GHz/5GHz)
BluetoothBT V4.2
LTE/GPSGPS (UBX-G8020-KT)
LTE CAT4 Sierra Module
NFCNFC Reader (NXP NPC300)
Barcode Scanner SW Decode: Honeywell Swift Decoder (1D/2D Support)
Rear Camera8MP Auto-Focus CMOS built-in module with Flash LED
SensorAmbient Light Sensor, Gyro Sensor & G-sensor
Ambient Light SensorYes
Speaker2 x 0.8W
MicrophoneYes
LED IndicatorCharging LED, Power LED
Main Battery 4.2 hr, 19.53Whr Removable lithium battery with latch lock (2570mAh, 7.6V)
Hot-Swappable BatteryYes, 2.66Whr back-up battery (700mAh*1, 3.8V, 1S1P)
I/O Port1 x USB 3.0 Type-A / 1 x Nano-SIM / 1 x Audio Jack / 1 x DC Jack / 1 x POGO Connector
Keypad2 x Volume Key
Fully Rugged FeatureIP65 / MIL-STD-810G 1.5m Drop / Shock & Vibration / Sand & Dust-Blowing Sand / High/Low Temperature – Operation / High/Low temperature – Storage / Freeze/thaw –Rapid temperature change / Thermal Shock
Dimension299 x 199 x 17.7 mm (w/o bumpers & hand-strap) / 307.9 x 207.9 x 29.3 mm (w/ bumpers & hand-strap)
Weight 895g
Operating Temperature-10°C ~ 50°C
Storage Temperature-20°C ~ 60°C
Storage Humidity10% ~ 90% @40°C non-condensing
SecurityHW TPM 2.0 FIPS 140-2 Level 2 Compliance
CertificationCE / FCC / VCCI
ACCESSORYPower AdapterAC to DC, DC19V 65W Adaptor
Hand-strapYes
Shoulder-strapYes
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Mitac Edge AI Guide Download (PDF)
Specifications Download (PDF)
Produt guide Download
