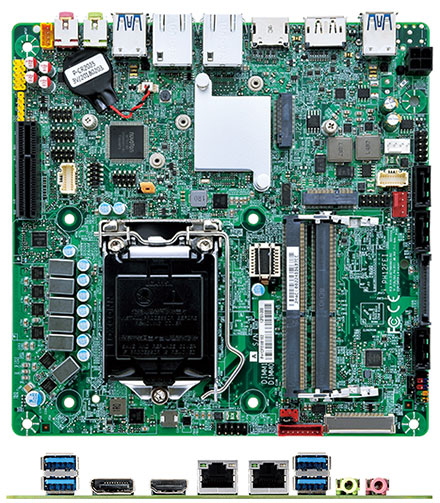

Mitac PH12FEI-H310-19V Thin-ITX (Intel H310, LGA1151 Coffee Lake)

Mitac PH12FEI-H310-19V Thin-ITX (Intel H310, LGA1151 Coffee Lake)

  • Intel® Coffee Lake Core i7/i5/i3 / Pentium / Celeron LGA1151 processors
  • Intel H310 Chipset
  • 2x DDR4 SO-DIMM, support up to 32GB
  • Support triple display for HDMI, Display Port and LVDS
  • Support PCIe x4 (Gen 3) slot
  • 3x SATA III
  • 2x Intel Gigabit Ethernet
  • 6x USB 2.0, 4 x USB3.1 (Gen 2), 4 x COM and 1 x MiAPI (configurable digital I/O)
  • DC-in 19V power input


Attention : M.2 slot is without function.



Share

179.95 EUR
incl. 19% VAT, plus shipping
Available in 6 weeks

Add to cart
PH12FEI (PH12FEI) Specifications
MECHANICALFORM FACTORMini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
SYSTEMPROCESSOR9th & 8th Gen Intel Coffee Lake LGA1151 Socket Processor, Core i7/i5/i3 6-core TDP Max. 65W, Core i9 8-core TDP Max 35W
CHIPSETIntel® H310 / Intel® Q370 (Support RAID 0 / 1 / 5)
SYSTEM MEMORYDDR4 2666MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
GRAPHICSIntel® HD Graphics
ETHERNETIntel® I219-LM Giga LAN + Intel® I210-AT Giga LAN
AUDIORealtek® ALC662
I/O CHIPSETNuvoton NCT6116D
TPMNuvoton NPCT750AAAYX TPM2.0 (Optional)
EXPANSION SLOT
BIOS256 Mbit SPI
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan / System Fan
GRAPHICSVGA-
DVI-
HDMIUp to 4K (4096 x 2160) @30 Hz
DISPLAYPORTUp to 4K (4096 x 2304) @60 Hz
LVDSUp to 1920 x 1200 @60 Hz
eDP (Option)Up to 4K (4096 x 2304) @60 Hz
REAR I/OUSB4 x USB 3.1 Gen 2 / 4 x USB 3.0 (H310)
DISPLAY I/O1 x HDMI 1.4 / 1 x DisplayPort 1.2
AUDIO I/O1 x Mic-in / 1 x Line-out
LAN I/O2 x RJ-45
SERIAL PORT-
PS/2 PORT-
OTHERSDC-in 19V (5.1 mm / ID, 7.4 mm / OD)
INTERNAL CONNECTORSSTORAGE3 x SATAIII
USB6 x USB 2.0 (Q370) / 5 x USB 2.0 (H310)
DISPLAY I/O1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector
AUDIO I/O1 x Audio Header (Front Panel Mic-in & Line-out)
SERIAL PORT4 x RS232 (One supports RS232 / 422 / 485)
PARALLEL PORT-
GPIO1 x MiAPI Header (Programmable. Support 10-bit GPIO)
FAN1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
POWER1 x ATX Power Connector / 1 x AT / ATX Mode Select Jumper
OTHERS 1 x Chassis Intrusion / 1 x CMOS Jumper
POWER REQUIREMENTPOWER INPUTDC-in 19V (5.1 mm / ID, 7.4 mm / OD) / ATX 2-pin 19V
ENVIRONMENTALOPERATING TEMPERATURE0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE-20 ~ 80°C (-4 ~176°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORTWindows® 10 64-bit / Linux (support by request)
PACKING LISTPACKAGE1 x Motherboard / 1 x 50 cm SATA Cable / 1 x 45 cm SATA Power Cable / 2 x I/O Bracket (Half and Full Height) / 1 x Quick Installation Guide / 1 x ATX 4-pin to DIN 4-pin Cable (12v SKU only)
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Mitac Edge AI Guide Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

M.2 PCI Slot
The 2260/2280 slot has no function, the M.2 2230 E key (PCIe, USB 2.0) slot function is ok.
