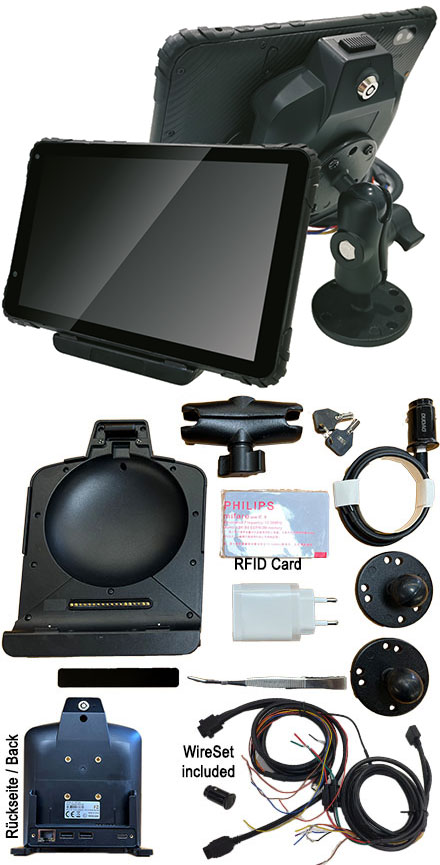

CTFPND-11B (8" Android TabletPC/PND, Ruggedized, 2.0Ghz Octacore CPU/4GB RAM, GPS/WLAN/BT/LTE, RFID (NFC), TTL/RS232, Video-In, RJ45-LAN)

The mobile terminal designed for heavy duty truck fleet management system. Be adopted by field service provider, SaaS vendor and solution provider, warehouse operator, construction contractor, use for industrial applications.

Truck driver use it for navigation, routing, dispatching, e-signatures, proof-of-delivery, order management, vehicle maintenance, fuel consumption management, logbook, and fleet operators use it for ELD and extend digital workflow to mobile vehicles, improving productivity.

CTFPND-11B is a high performance tablet terminal with 8" display, IP67 rated. Equipped with octa core processor, advanced GPS chiset, 4G/3G/WLAN module, with RFID, Bluet
[more]

Share

549.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

The mobile terminal designed for heavy duty truck fleet management system. Be adopted by field service provider, SaaS vendor and solution provider, warehouse operator, construction contractor, use for industrial applications.

Truck driver use it for navigation, routing, dispatching, e-signatures, proof-of-delivery, order management, vehicle maintenance, fuel consumption management, logbook, and fleet operators use it for ELD and extend digital workflow to mobile vehicles, improving productivity.

CTFPND-11B is a high performance tablet terminal with 8" display, IP67 rated. Equipped with octa core processor, advanced GPS chiset, 4G/3G/WLAN module, with RFID, Bluetooth, camera and support hardware customization.

Support MDM remote control server. Support OTA upgrading, firmware customization, APK integration and debug log.

● High performance media tablet with rugged design with IP67 rating
● Rear Camera 20MP
● 8” capacitive multi touch screen tablet for great mobility
● 500 nitts brightness
● True HD 1080P Video Playback & Output
● High capacity battery for an entire days use
● Android 12 support
● GPS/WLAN/BT/2G/3G/4G(LTE) !
● RFID (NFC)!
● Serial ports (2x RS232, 2xRS485)!


If you have a project with serious size and are able to sign a NDA we can provide Androis-OS-system builder kit for this device which enables you to create your own Android OS image (eg. own boot logo, own preinstalled apps and settings, etc...) !

Hardware
Dimension/Weight 207x138x15mm, 530g
CPU Processor Speed 2.0Ghz Octa Core MTK
OS Android 12
Memory 4GB RAM
Storage 32GB NAND Flash
Memory Slot SD/TF card
GPS Chipset High sensitivity receiver, 64 channels
Color Display 8" TFT multi touch capacitive touchscreen
Panel Resolution 1280x800
Speaker Yes
Antennas Internal+MMCX external
3G/GPRS Module 2G/3G/4G baseband from MTK platform
GSM – 850/900MHz, 1800/1900Mhz
WCDMA – 850/900/1700/1900/2100Mhz
FDD (4G) – B1, B3, B5, B7, B8, B20
Camera 20MP rear with autofocus and flashlight
RFID NXP PN 553 chipset. Supports NFCIP-1 and NFCIP-2, ISO/IEC14443, ISO/IEC 15693, MIFARE and FeliCa
Light Sensor Yes, default
Gyroscope Yes, default
G-Sensor Yes, default
Wired Interface Cradle: LAN RJ45 (10/100 Mbit)
Wireless Interface WLAN (802.11b/g/n/ac+Bluetooth v2.1+EDR, 3.0+HS, v4.1+HS, optional LORA
LED Two-color LED (Red/Green)
Operating voltage 12-24V DC input
Battery Built-In (8000mAh, Standby 1 week+, ~6hrs+ operating)
IP Standard IP67
Operating temperature -10 bis 60°C
I/O ports Docking Connector (18-pin)
1xUSB Type C 2.0 OTG
1x3.5mm Audio Headphone Jack
2xUSB Type A 2.0 OTG on the cradle
1xRJ45 Connector on the cradle
1xType C on the cradle for power supply
2x Nano-SIM card slot
Scope of supply 1x 8" Android TabletPC
1x Cradle
1x RAM Mount
1x USB Cable
1x NFC card
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
