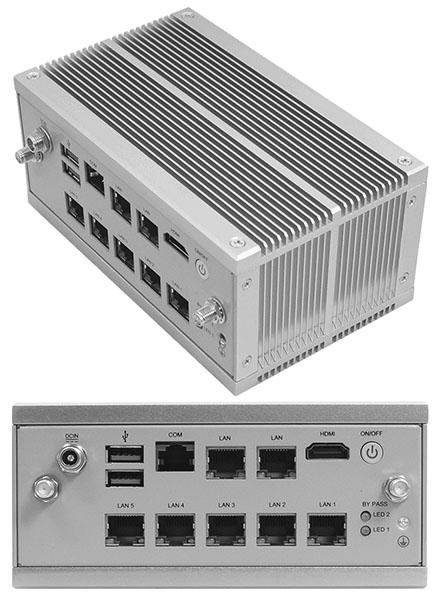

Jetway BFBZ38-6412-N7B2 (Intel Celeron J6412, 7x 2.5GbE LAN) [FANLESS]

Jetway BFBZ38-6412-N7B2 (Intel Celeron J6412, 7x 2.5GbE LAN) <b>[FANLESS]</b>
  • Intel J6412 (TDP 10W) !
  • 7x LAN !
  • 2x LAN Bypass !

  • 1 x DDR4 3200MHz SODIMM Slot, up to 32GB
  • 1 x HDMI 2.0b
  • 7 x 2.5GbE
  • 1 x RS485/422/232
  • 2 x USB 3.2 Gen.1
  • 2 x M.2 M-key 2280, 1 x M.2 E-Key 2230
  • MB support 12V DC-in
  • Support 64GB TPM2.0 (optional)



Share

579.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
SYSTEM
CPU Intel® Celeron® Processor J Series (formerly Elkhart Lake)
CHIPSET Intel® J6412 (TDP 10W)
SYSTEM MEMORY 1 x DDR4 3200MHz SODIMM up to 32GB
DISPLAY INTERFACE 1 x HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
STORAGE DEVICE 1 x M.2 M-key 2242/2280 (SATAIII interface)
1 x M.2 M-key 2280 (PCIe Gen.3 x2 interface) support NVMe
ETHERNET 7 x Intel® I225-V, 2.5GbE (LAN1/2/3/4 Support BY PASS Function)
Front I/O Din Rail Screw Hold
Rear I/O 2 x SMA Antenna Hole
DC jack (Lockable)
2 x USB3.2 Gen.1
7 x RJ45 (LAN1/2/3/4 Support Bypass Function)
1 x Console (RS232/422/485)
1 x HDMI
1 x Power Button, Power LED
2 x Bypass LED
GND Hold
EXPANSION 1 x M.2 E-Key 2230 for WiFi module
INDICATOR 1 x Power LED
2 x Bypass LED
OS SUPPORT Windows® 10
Windows® 11
Linux
POWER SUPPLY
POWER REQUIREMENT MB: DC Input 12V
Adapter: AC100~240V / DC12V 5A 60W
MECHANICAL
MOUNTING Desktop, Wallmount, Din Rail
DIMENSIONS (W x H x D) 161.0(W) x 89.0(D) x 67.0(H) mm (6.3″ x 3.5″ x 2.6″)
GROSS WEIGHT —
NET WEIGHT —
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE -10°C ~ 50°C (14°F ~123°F)
(Under the condition of using M.2 interface SSD)
STORAGE TEMPERATURE -20°C ~ 60°C (-4°F ~141°F)
OPERATING HUMIDITY 10 ~ 90% @ 40°C, non-condensing
ANTI-VIBRATION —
ANTI-SHOCK —
CERTIFICATION CE/FCC Class A , LVD
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
