CTF800-L - VGA 8" TFT - Touchscreen USB - PAL/NTSC - Autodimmer - IR Remote - Audio (500 nits) [LED-Backlight] [REFURBISHED]

CTF800<b>-L</b> - VGA 8" TFT - Touchscreen USB - PAL/NTSC - Autodimmer - IR Remote - Audio <b>(500 nits) [LED-Backlight]</b> [<b>REFURBISHED</b>]
3D 360° View
  • High brightness !
  • Slim design !
  • Auto-PowerOn !
  • LED-Backlight !

Remnant offer. Refurbished. Slight traces of usage on device. 2 years warranty.

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

With maximum depth of 29mm the new slim CTF800-L will convince you. Its the ideal display- and
[more]

Share

98.00 EUR
incl. 19% VAT, plus shipping
In Stock (6 pcs)

4 von 5 Sternen
2 ratings
Add to cart

Remnant offer. Refurbished. Slight traces of usage on device. 2 years warranty.

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

With maximum depth of 29mm the new slim CTF800-L will convince you. Its the ideal display- and control unit for your Laptop, CarPC or HTPC. With help of the touchscreen functionality, the PC can be controlled comfortable with your fingers. The briliant VGA-display enables a maximum readability and sharpness.

The device has integrated Stereo-speakers and an automatically switched rear camera input. An AC-Home adapter and a cigarette lighter adapter is included with the package, as well as an IR-remote control unit and the extralong (2,5 meters) All-In-One connector cable.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..





Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz

Spezifications
Screen size 8" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1200 (also eg. 1366x768)
Color configuration RGB stripe
Power input DC 12V (12/24V available for project customers)
Power consumption max. 9W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 220x135x29 mm
Display : 174 x 105 mm
Headrest shroud : 238x153x30 mm
Video input signal 1.0Vp-p, composite video
Contrast 300:1
Brightness 500 cd/m²
Vibration IEC68-2-6
Operating Temperature -30° to 85°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Auto Power On/Off
Autodimmer
Automatic switching to rear camera (by a 12V cable)
LED backlight

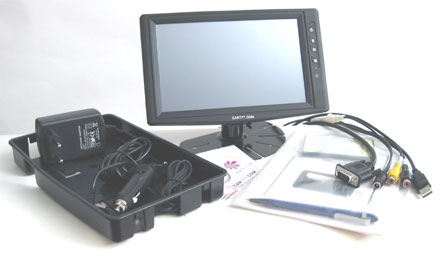

What is included ? - 8" VGA Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- Headrest shroud
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen/Power-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 2 ratings
4 von 5 Sternen from kurtum am 10.05.2008 | See all my comments

Excellent price

3 von 5 Sternen from Don-Stefan am 25.12.2007 | See all my comments

total super dieses display spitzen angebot
